F1500
For deburring, edge rounding and finishing of sheet metal parts up to 1500 mm wide.
This wide deburring machine has been developed by Q-Fin to finish flat sheet metal parts up to 1500 mm wide. The machine can be used for the following operations on non-ferrous or ferrous metals: deburring, grinding, edge breaking, edge rounding, slagremoval, oxide layer removal, line finish. A combination of these operations is also possible.
More information
I would like to receive the detailed technical specifications of this machine.
"*" indicates required fields
Q-FIN Quality Finishing Machines
Wilgenakker 8
5571 SJ Bergeijk
The Netherlands
t. +31 (0)497 58 10 18
[email protected]
- The fastest and most compact wide belt machine
- Combination of operations programmable
- Easy-to-use HMI screen with adjustable programs
- Optional automatic height setting on both grinding and brush units
- Vacuum or magnet support for non-ferrous or ferrous metals
Get your
competitive
edge
F1500
With the F1500 you can easily and quickly deburr, round and/or finish wide sheet metal parts. Depending on the materials to be processed choose the vacuum or magnetic support system. The conveyor belt is adjusted accordingly. The machine is easy to operate by means of a touchscreen at the front. The machine consists of 3 operating stations.
The first station of the F1500 consists of the grinding unit. The grinding belt takes away the burrs and/or burn-in points of the product surface. If you do not have any burrs, you can switch the grinding belt off or remove it. It is also possible to use a finesanding belt (e.g. grain K320) to give you product a nice line finish. The second and third station of the F1500 consists of the brush unit, equipped with 4 crosswise rotating, oscillating disc brushes. These allow you to remove the sharp edges of the product by breaking the edges or provide them with a (large) radius.
Installing special brushes makes the F1500 with magnetic system also suitable for removing oxide layer on steel products or deslagging plasma cut parts.
| F1500 | ||
| Conveyor belt speed | 0.3 - 5 m/min | |
| Product fixation | Vacuum or magnet support | |
| 7.5 kW grinding unit with frequency control | 1 | |
| 2.2 kW disc brush motor with frequency control | 4 | |
| Minimum workpiece dimension | 50 x 50 mm (MAG) / 80 x 80 mm (VAC) | |
| Maximum workpiece width | 1500 mm | |
| Maximum workpiece height | 170 mm | |
| Machine power supply | 400 V, 50 Hz, 32 A, 16 kW | |
| Dimensions (L x W x H) | 2037 x 2478 x 2090 mm | |
| Weight | 2850 kg |
Test this machine in our showroom
Are you interested in one of our machines but would like to see it in action first? Schedule an obligation-free demonstration at our showroom location. Alternatively, you can also send us your own products for a remote demonstration. Contact us for more information, and we will get in touch with you regarding dates and possibilities.
Find out what suits this machine
Turnaround station
Reversing station for 2-sided finishing of sheet metal parts up to resp. 800, 1200 and 1500 mm wide.
Wet Extraction System
Fire hazard is excluded with our wet operating extractor system. Extracts grinding dust without loss of pressure.

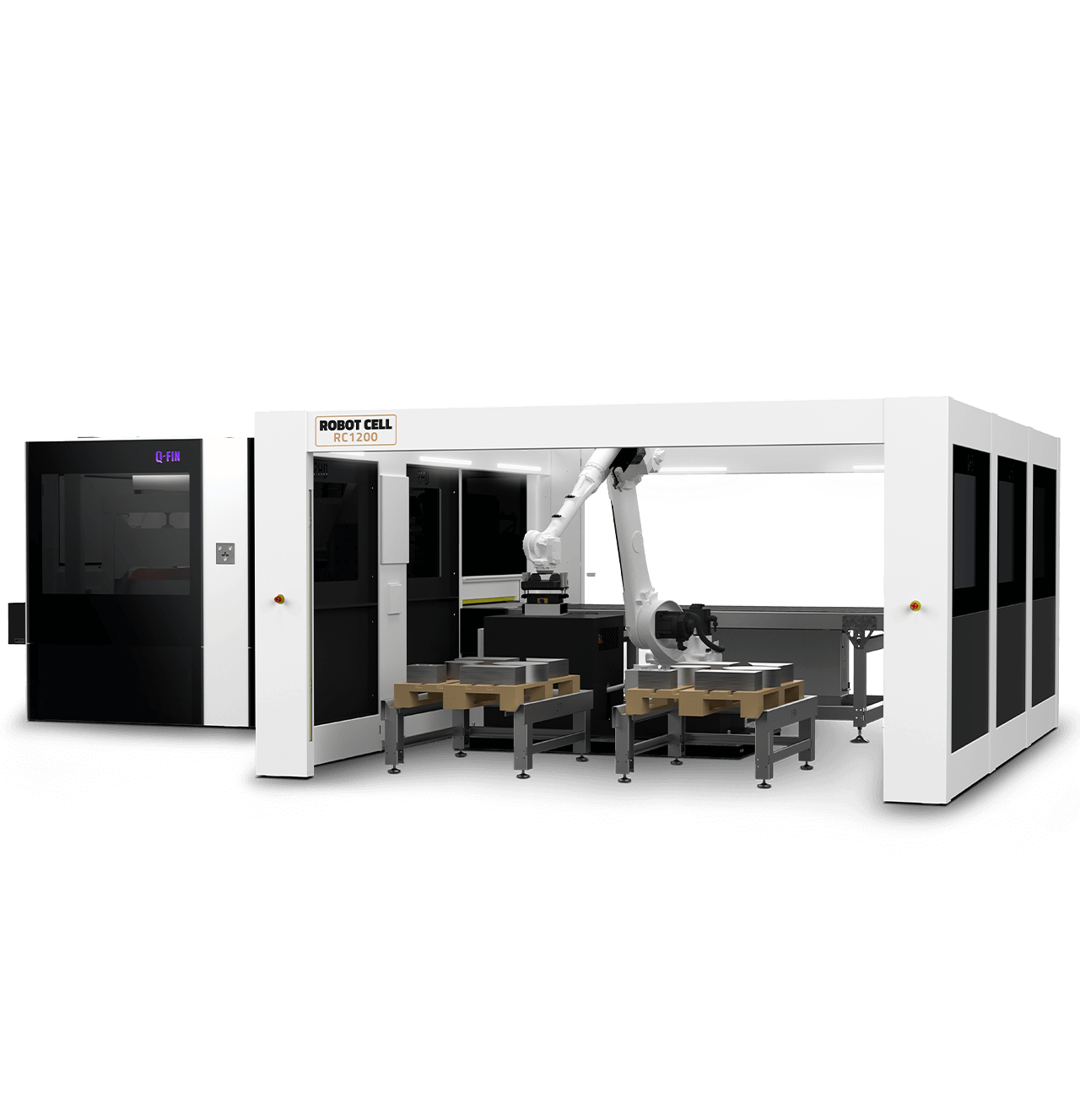

Robot Cell
Robot Cell for the automatic loading and/or unloading of sheet metal parts in combination with a F1200 or SER1200.
